TS-9101 8-Channel Manual & Automatic Power Controller

Description

Feature:

Compatible Protocol : It not only works with programmable central controller, but also fully supports the third-party control.

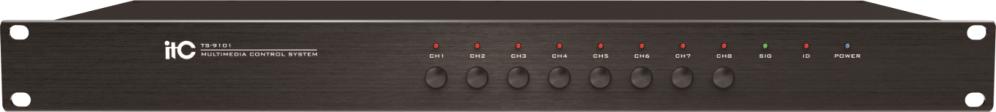

Manual control: In front of the machine, there are eight switches. In emergency situations, users can manually control the relay switch to protect other devices.

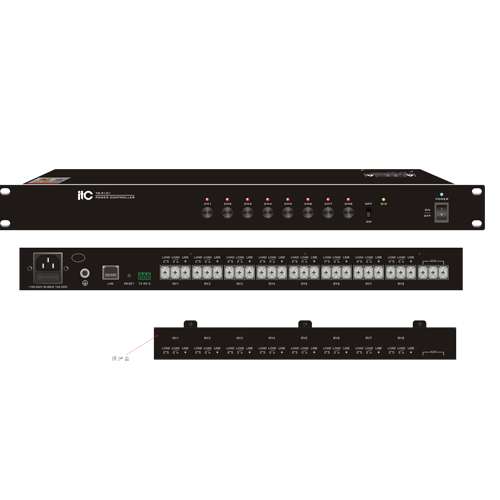

With an 8-channel relay, each relay has three terminal connection points with the function of normally open and normally close and It has one zero line terminal interface.
With 8-channel independent power switch control, the single current supports 20A.
With reset button, it supports to restore the default settings of the factory.
Equipped with equipment operation status indicator light and switch status indicator light of 8 relays.
It has a 1-channel network interface and supports remote control through the network.
ID selection: This machine has ID identification,so it is easy for system cascading expansion.
It has the function of keyboard LOCK to prevent misoperation and facilitate maintenance and management..

Specification:

Model	TS-9101
Manual Operation	8 channels independent power switch control
Loading Capacity	Single channel 20A
Power Supply	Wide voltage universal power supply（AC110V-220V）
Control Method	Connect to NET interface by RS-232
Network Port	RJ-45，100M
RS-232 Port	3Pin Header;Baud rate: 9600, Data bit: 8, Stop bit: 1, parity bit: none
Size	484×209×44(mm)
Weight	3.2Kg
Switching Current (MAX)	20A
Maximum Power Consumption	7.2W
