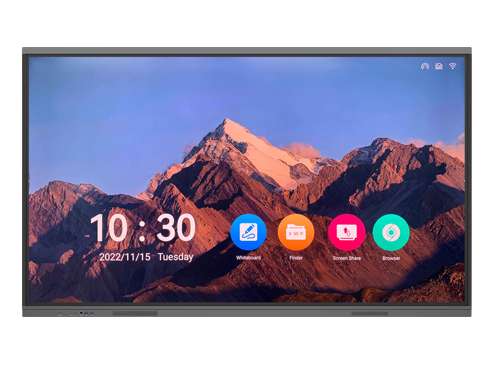

TV-98810 Interactive Flat Panel

The interactive flat panel integrates application modules such as presentation, writing, interaction and sharing to create a simple paperless meeting/teaching scene, and to easily realize an efficient, convenient and harmonious meeting/teaching method.

SKU: tv-x8186-itchub-intelligent-conference-flat-panel-3 Category:

Description

  • 4K UHD display, zero lamination design, AG tempered glass, high color gamut.
  • Built-in Android operating system, support optional ultra-thin plug-in PC module.
  • High degree of touch algorithm optimization, fast response, high writing and presentation fluency.
  • Support operating signal source, volume and others by touch under the display status of signal sources.
  • Support anti-light interference, use as usual under direct sunlight
  • Support HDMI channel signal input smart wake-up function in standby mode.
  • Support touch menu, including return key, menu operation, task preview, channel switching, volume adjustment, shortcut whiteboard, etc.
  • Support any channel writing annotation function.
  • Support channel memory function, enter the home page by default when booting, support custom named channel function.
  • In standby mode, HDMI channel signal input intelligent wake-up.
  • Support wireless screen transmission.
  • Support WIFI 6.
  • Support intelligent light sensing to adjust backlight.
  • Support recording screen, electronic whiteboard and handwritten annotation, can meet various requirements of training classes.

Specification:

Model TV-98810
ProcessorMali-G52 MP2 dual-core, Quad-Core A55 quad-core
OSAndroid 11
RAM4GB
Storage32GB
Screen typeLED LCD screen
Screen size98 inches（16：9）
Screen display size2160.5（H）×1217.3（V）mm
Physical resolution3840（H）×2160（V）
Pixel pitch0.1645×0.4935mm
Color gamutNTSC(Typ)72%
Response timeTyp：6.5ms  Max：12ms
Refresh rate60Hz
Chromaticity1.07B (10bit)
Brightness450 cd/㎡
Contrast1200:1
Viewing angle178°(H/V)
Backlight lifespan≥50000h
Audio channel2.0
Speaker2 x 15W@ 8Ω
Input portTYPE-C*2；HDMI*1；TUOCH*1；USB3.0*2；HDMI2 IN*1；HDMI1 IN*1；RJ45 IN*1；AUDIOIN*1；VGAIN*1；DPIN*1；
Output portOPTICAL OUT*1；USB2.0*1；TOUCH*1；USB3.0*2；WIFI*4；HDMI OUT*1；RJ45 OUT*1；LINE OUT*1
Communication portRS232*1
Touch embedding modeBuilt-in all-in-one, non-external design
Touch sensing technologyInfrared induction recognition touch technology; PC: 20 points / Android: 10 points
Writing methodFingers, stylus or non-transparent objects larger than 5mm in diameter (multi-touch 8mm)
Writing height3.5mm
Writing screen surface hardness7H
Output coordinates32767(W)*32767(D)
WiFi802.11a/b/g/n/ac/ax+Bluetooth5.0，working frequency: 2.4GHz/5GHz, working distance: 12m
Power supply100-240V~50/60Hz input
Standard power consumption≤400W
Standby power consumption≤0.5W
Working temperatur0℃～40℃
Working humidity≤80%RH
Overall size（L*H*D）2222.49mm*99.9mm*1330.9mm
Package size（L*H*D）2410*320*1510MM
WeightNet weight: 98±1kg，gross weight:143±5kg
