90 Degree Curved LED Display

90 Degree Curved LED Display is an innovation of our company. Most of them are used for stage rental, concerts, exhibitions, weddings, etc. With the great features of curved and fast lock design, the installation work becomes quick and easy. The screen has up to 24 bits grayscale and 3840Hz refresh rate, which make your stage more attractive.

SKU: indoor-fixed-led-video-wall-display-w-series-1-1-1-1 Category: Rental LED Display

Description

Advantages

90 degree curved cabinet
A lightweight and ultra slimline design
Fully front or rear maintenance
P2.6/P2.97/P3.91 Led Module & Panels & Screens available

Product Detail

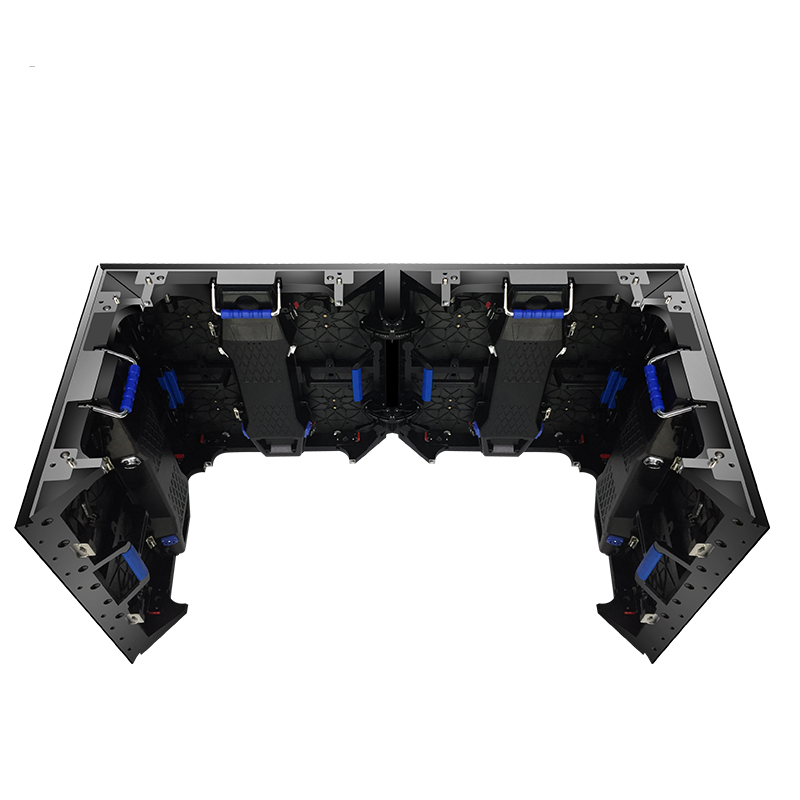

1. Seamless 90° Splicing

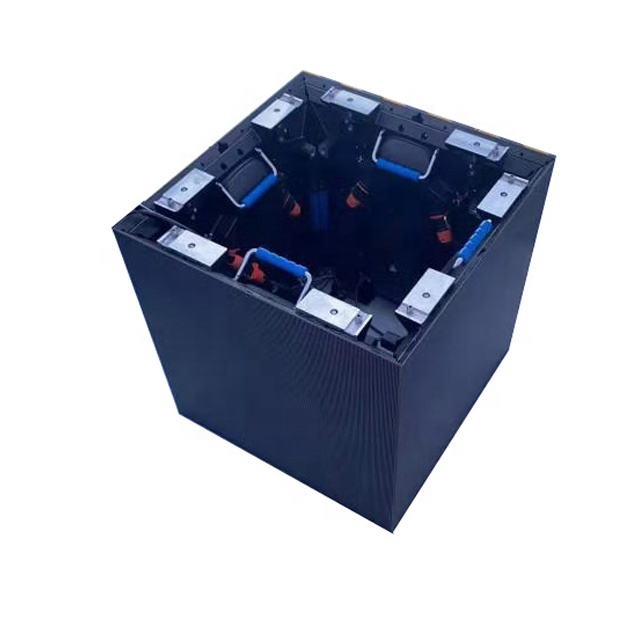

2. Hanging Beam For Cube Design

3. Straight Design

4. New Generation Locks

5. Concave and Convex Curve

Technical Parameter

Items	C-2.6	C-2.9	C-3.9
Pixel Pitch (mm)	P2.6	P2.97	P3.91
LED	SMD1515	SMD1515	SMD2020
Pixel Density (dot/㎡)	147456	112896	65536
Module size (mm)	250X250
Module Resolution	96X96	84X84	64X64
Cabinet size (mm)	500X500
Cabinet Materials	Die casting Aluminum
Scanning	1/32	1/28	1/16
Cabinet Flatness (mm)	≤0.1
Grey Rating	14 bits
Application environment	Indoor
Protection Level	IP45
Maintain Service	Front & Rear
Brightness	800-1200 nits
Frame Frequency	50/60HZ
Refresh Rate	3840HZ
Power Consumption	MAX: 200Watt/cabinet Average： 60Watt/cabinet
