Stage LED Video Wall – R Series

Description

Advantages

Slim and Lightweight Design;
Integrated Cabling System;
Full Front & Rear Access Maintenance;
Two Sizes Cabinets Adaptable and Compatible Connection;
Multi-functional Application;
Various Installation Options.

Product Detail

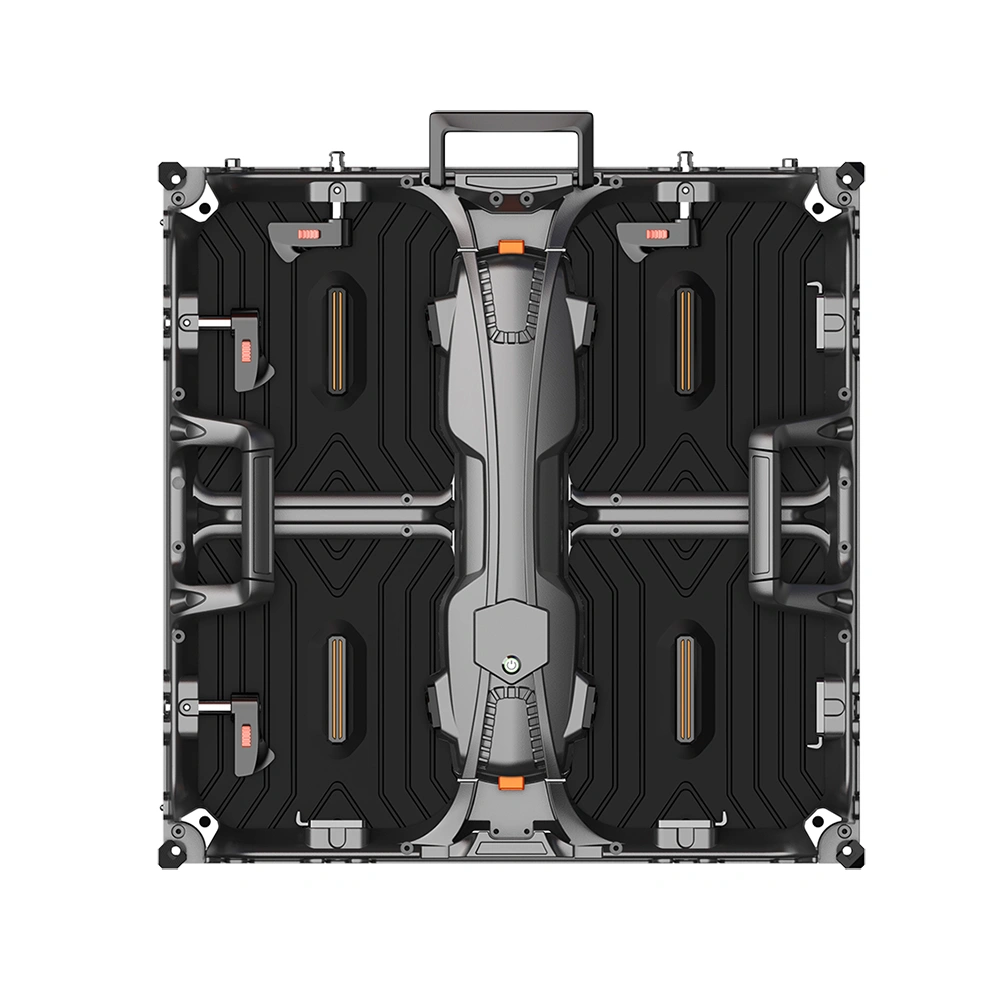

Slim and Lightweight Design

CNC Aluminum die-casting cabinet, only with 7.0kg and 87mm thickness. four sets strong fast locks to make assembling to be easier.

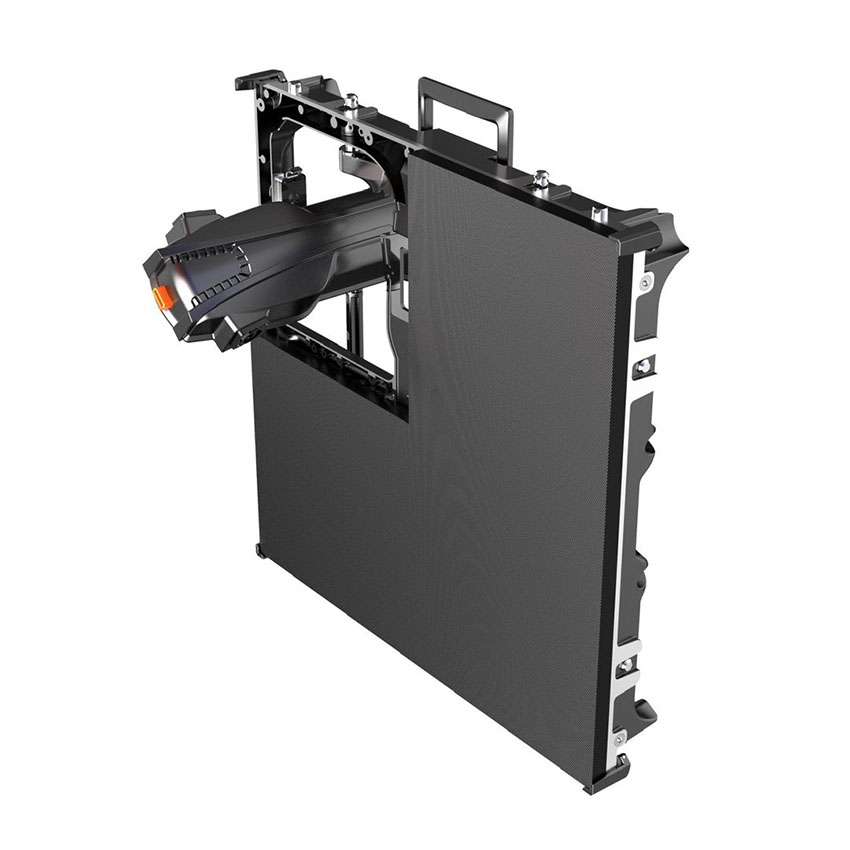

Integrated Cabling System

Integrated power and signal cabling design with IP65 waterproof,shockproof and stable cabling connection between module and control box,reducing 90% malfunction,compared with the traditional flat cable.

Seamless Side Lock

Brake lock helps the technician to finish installation in 1 person, save 50% assemble and disassemble time.

Multi-functional Installation

Curved system with -10°-+10° degrees concave and convex design,flexible applications for dance floor,rental events and other background.

Technical Parameter

No.		R2.6	R2.8	R3.9	RO2.9	RO3.9	RO4.8
Module	Pixel Pitch(mm)	2.6	2.84	3.91	2.9	3.91	4.81
	Module Size(mm)	250X250	250X250	250X250	250X250	250X250	250X250
	Module Resolution(pixel)	96X96	88X88	64X64	86X86	64X64	52X52
	LED Type	SMD2020	SMD2020	SMD2020	SMD1921	SMD1921	SMD2727
Cabinet	Cabinet Size(mm)	500X500X87/500X1000X87
	Cabinet Resolution(pixel)	192X192/192×384	176X176/176×352	128X128/128×256	172×172/172×384	128×128/128×256	104X104/104X208
	Material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
	Cabinet Weight（Kg）	≤7/14	≤7/14	≤7/14	≤7.5/15	≤7.5/15	≤7.5/15
Display	Pixel Density	147456pix/㎡	123904pix/㎡	65536pix/㎡	118336pix/㎡	65536pix/㎡	43264pix/㎡
	Brightness	≥800cd/㎡	≥800cd/㎡	≥800cd/㎡	≥4000cd/㎡	≥4000cd/㎡	≥5000cd/㎡
	Refresh Rate(Hz)	1920~3840			1920~3840
	Gray Level	14bit / 16bit			14bit / 16bit
	Avg. Power Consumption	175W/㎡			192W/㎡
	Max. Power Consumption	450W/㎡			550W/㎡
	Viewing Angle	H:160°V:140°			H:160°V:140°
	IP Grade	IP30			IP54
	Service Access	Front Access
	Operating Temp/Humidity	-20℃～50℃, 10～90%RH
	Storage Temp/Humidity	-40℃～60℃, 10～90%RH
	Input Signal	VGA, DVI, HDMI, SDI
	Certification	CCC, CE, UL,FCC,
