LED Video Wall For Stage -E Series

Description

Advantages

Concave or convex installation with curved locks
Wide viewing angle and high refresh rate
High quality CNC die-casting design, seamless splicing;
Fast spring lock design,fast connection;
Light and slim design, easy for installation;
Two size cabinet designs, meeting different requirements.

Product Detail

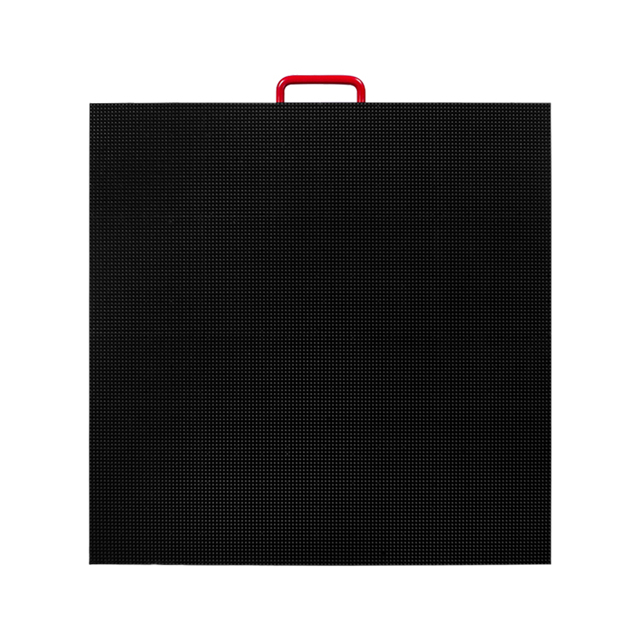

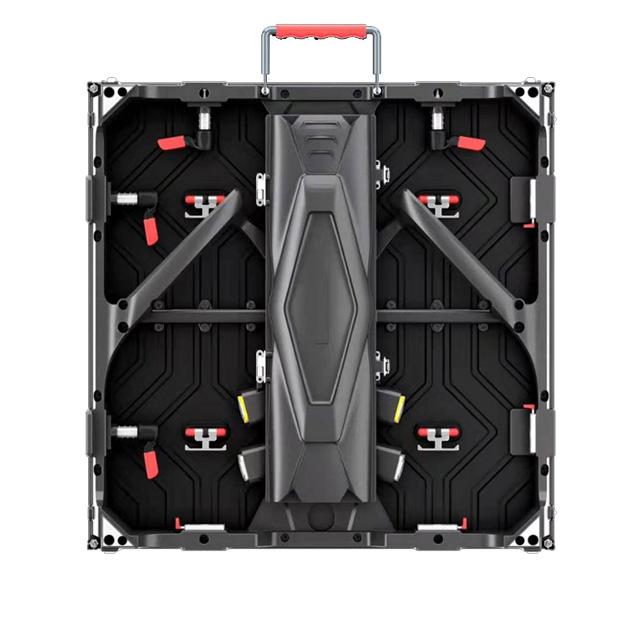

HIgh Quality Cabinet

High quality CNC die-casting design, seamless splicing. corner protectors are the four corners of the cabinets make it safer for your installation.

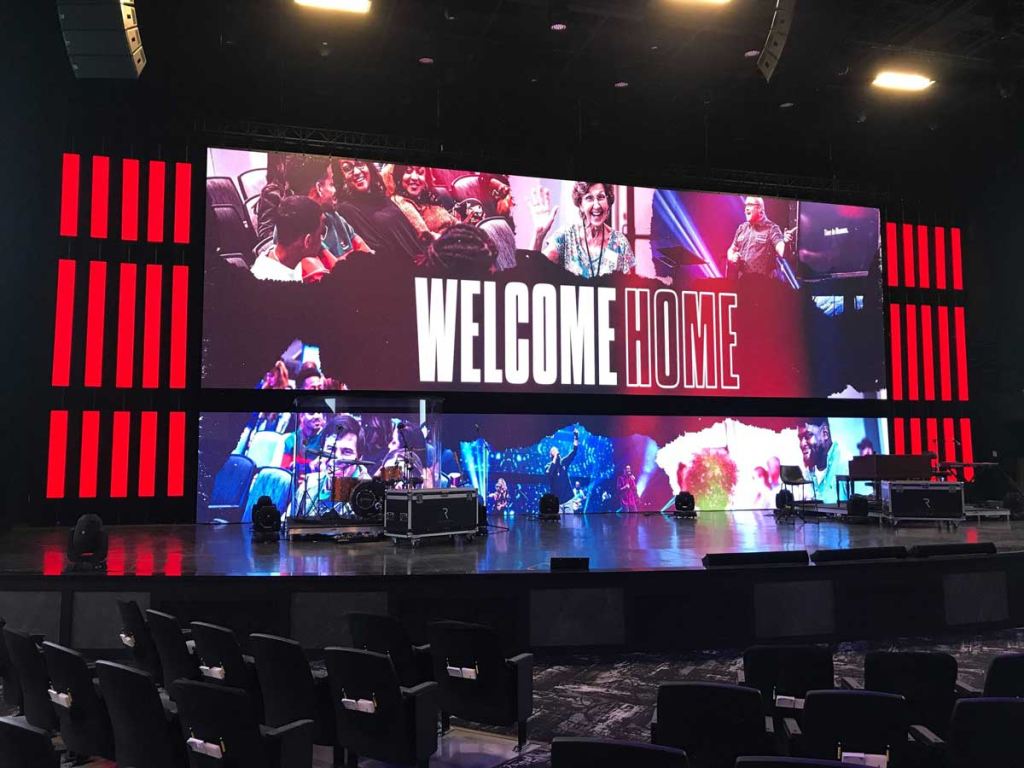

Multiple Scenarios, Creative Display

On the basis of its main features, E series LED display is always used to not only display information but also decorate the place. The screen is able to be assembled to form the curved design, and round shape design.

Supporting Mix Splicing

E & EL can be mixed splicing

FLEXIBLE INSTALLATION WAY

Both Stacking and Hanging installation will do for the events .

Technical Parameter

Items	E-I-3.9	E-I-4.8	E-O-3.9	E-O-4.8	E-O-5.9
Pixel Pitch (mm)	P3.91	P4.81	P3.91	P4.81	P5.95
LED	SMD2020	SMD2020	SMD1921	SMD1921	SMD2727
Pixel Density (dot/㎡)	65536	43264	65536	43264	28224
Module size (mm)	250X250
Module Resolution	64X64	52X52	64X64	52X52	42X42
Cabinet size (mm)	500X500
Cabinet Materials	Die casting Aluminum
Scanning	1/16	1/13	1/16	1/13	1/8
Cabinet Flatness (mm)	≤0.1
Grey Rating	14 bits
Application environment	Indoor		Outdoor
Protection Level	IP45		IP67
Maintain Service	Front & Rear		Rear
Brightness	800-1200 nits		3500-5500 nits
Frame Frequency	50/60HZ
Refresh Rate	3840HZ
Power Consumption	MAX: 200Watt/cabinet Average： 65Watt/cabinet		MAX: 300Watt/cabinet Average： 100Watt/cabinet
